In problem-solving, root cause analysis, and process improvement, a cause and effect diagram (also known as a fishbone or Ishikawa diagram) is a powerful visualization medium. It maps out potential causes of a specific problem, organizing them into logical categories to identify key drivers and streamline solutions.

After reading this blog, you will get all the knowledge about how to make a cause and effect diagram in Excel, from structuring the fishbone framework to refining details. However, manual creation in Excel often involves maddening adjustments and other challenges that can slow down analysis. You waste valuable time wrestling with frustrations that stall your problem-solving momentum instead of focusing on key drivers.

For a faster, more intuitive solution, the AI tool PicDoc transforms text descriptions into polished cause and effect diagrams instantly. Say goodbye to tedious formatting and hello to efficient problem analysis. Let's go!

What is a Cause and Effect Diagram & Its Applications

Whether troubleshooting manufacturing defects, reducing customer complaints, or optimizing workflow inefficiencies, a cause and effect diagram brings clarity to complex issues by linking "effects" to their underlying "causes."

A cause and effect diagram, invented by Japanese quality control expert Kaoru Ishikawa, earns its "fishbone" nickname from its structure: a central "spine" representing the problem (effect) with branching "bones" for potential causes. It systematically organizes causes into categories, making it easier to trace root issues rather than just addressing symptoms.

Core Elements

• To create an effective fishbone diagram, team members should engage in collaborative brainstorming sessions.
• Participants should be encouraged to express all potential causes without judgment to ensure a thorough exploration of ideas.
• Once the diagram is complete, the team members can prioritize the identified causes using various techniques, such as voting or impact-effort analysis, to focus on the most critical areas for further investigation and action.

A well-designed cause and effect diagram includes:

• Spine (Effect): A horizontal line at the center, ending in a box or arrowhead labeled with the specific problem (e.g., "Product defects in Batch 5").
• Main Branches (Categories): Diagonal lines extending from the spine, each representing a major cause category. Common categories follow the "6Ms": Manpower (people), Machinery (equipment), Methods (processes), Materials (inputs), Measurement (data collection), and Environment (conditions).
• Sub-Branches (Causes): Smaller lines branching off main branches, listing specific causes within each category (e.g., under "Manpower": "untrained operators," "fatigue").
• Labels: Clear text on each branch and sub-branch to define categories and causes, ensuring readability.

Applications

Cause and effect diagrams are widely used across industries:

• Manufacturing: Identifying causes of product defects (e.g., "paint peeling" linked to "low temperature in drying room" or "faulty spray nozzle").
• Service Sector: Troubleshooting customer dissatisfaction (e.g., "late deliveries" traced to "traffic delays," "inaccurate scheduling software").
• Healthcare: Analyzing medical errors (e.g., "medication mix-ups" linked to "unclear labeling," "staff miscommunication").
• Education: Addressing student performance gaps (e.g., "low test scores" tied to "outdated textbooks," "inconsistent teaching methods").

By visualizing cause-effect relationships, teams can prioritize solutions, assign responsibilities, and prevent recurring issues.

Step-by-Step Guide: Creating a Cause and Effect Diagram in Excel

Excel's flexibility with shapes and text (SmartArt) makes it possible to build a functional cause and effect diagram, though it requires careful attention to structure. Follow these steps for a clear, professional result.

Preparation

• Define the effect: Clarify the problem you're analyzing (e.g., "high customer churn rate")—this will be the "head" of the fishbone.
• List cause categories: Decide on major categories (use 6Ms as a starting point: Manpower, Machinery, Methods, Materials, Measurement, Environment).
• Sketch a rough framework: Outline how the main branches and sub-branches will align to avoid confusion during digital creation.
• Ensure Excel version compatibility: Use Excel 2016 or later for full access to shape formatting tools.

Step 1: Set Up the Worksheet

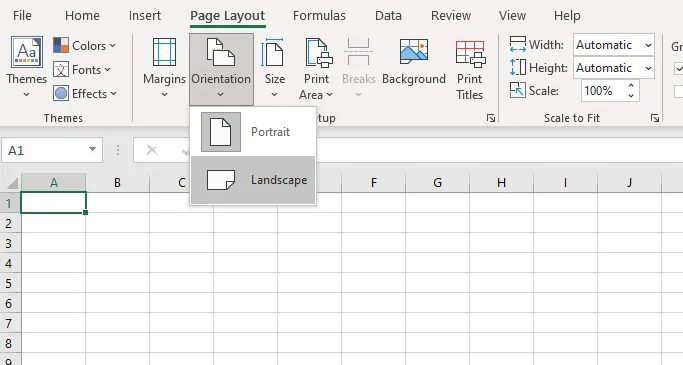

• Open Excel and set the page to landscape orientation for more horizontal space: Go to Page Layout—Orientation—Landscape.

• Adjust margins to maximize drawing area: Click Page Layout—Margins—Narrow.

Step 2: Draw the Spine and "Head" of the Fishbone

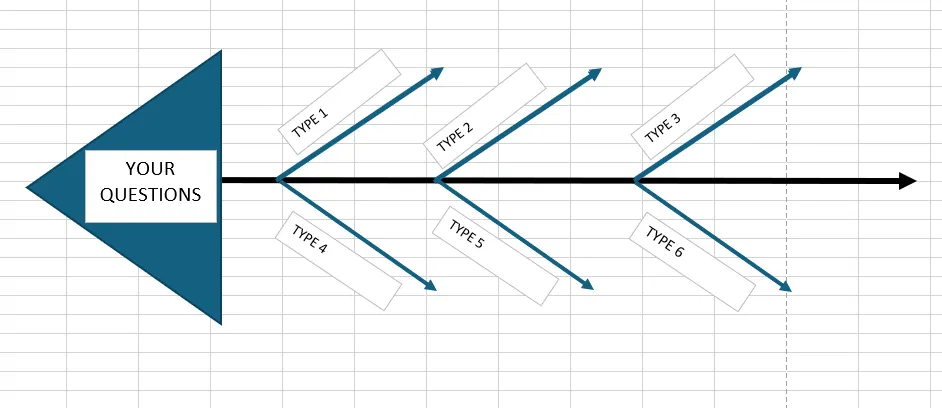

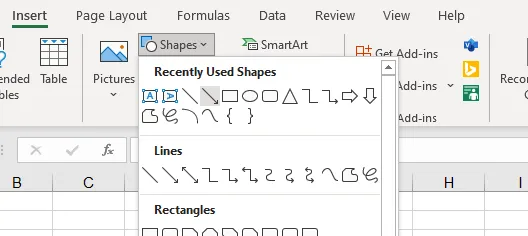

• Insert the spine: Go to Insert—Shapes—Arrow (straight horizontal arrow). Drag to draw a long horizontal line—this will be the main spine.

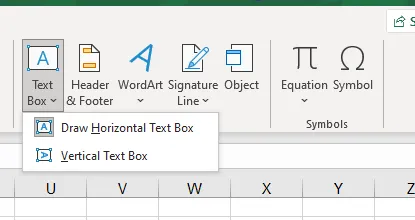

• Add the effect "head": Insert a text box (Insert—Text Box) at the right end of the spine. Type the problem (e.g., "High product return rate") and resize the text box to fit. Position it so the spine connects to the center of the text box (like the "head" of a fish).

Step 3: Add Main Branches (Cause Categories)

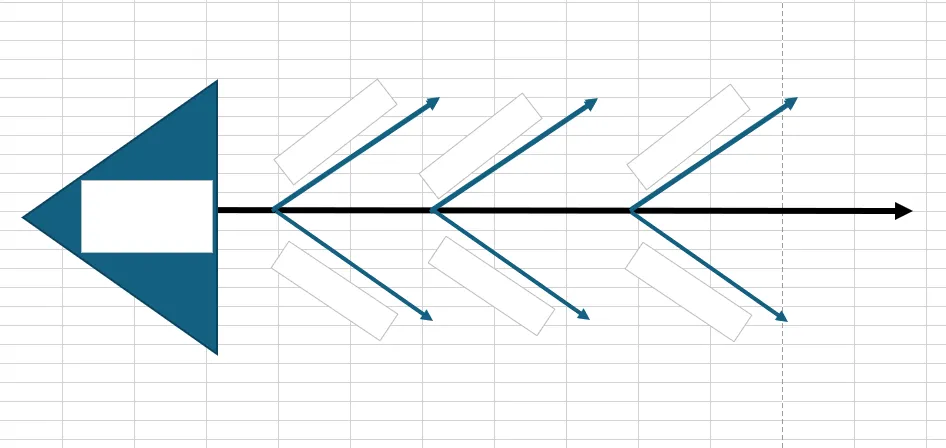

• Insert diagonal lines: Use Insert—Shapes—Line (or "Arrow" for clarity) to draw diagonal lines branching off the spine at 45° angles. These are your main branches.

Tip: Hold Shift while drawing to lock the angle at 45° increments, ensuring uniform alignment.

• Duplicate for consistency: Select a main branch, press Ctrl+C then Ctrl+V to copy it. Adjust positions so branches are evenly spaced along the spine (typically 3–6 main branches).

Step 4: Add Sub-Branches (Specific Causes)

• Draw smaller lines: For each main branch, add shorter diagonal lines (sub-branches) at 45° angles, extending outward from the main branch. These represent specific causes.
• Align precisely: Select all branches, go to Shape Format—Align, and choose Align Middle to ensure vertical symmetry relative to the spine. Use Distribute Horizontally to space main branches evenly.

Step 5: Label All Elements

• Label main branches: Insert text boxes next to each main branch and type category names (e.g., "Manpower," "Machinery").
• Label sub-branches: Add smaller text boxes to sub-branches, listing specific causes (e.g., under "Machinery": "overheating," "outdated calibration").
• Format text: Use the Home tab to adjust font size (10–12pt for main labels, 8–9pt for sub-labels) and bold category names for emphasis.

Step 6: Refine Formatting and Group Elements

• Enhance visibility:

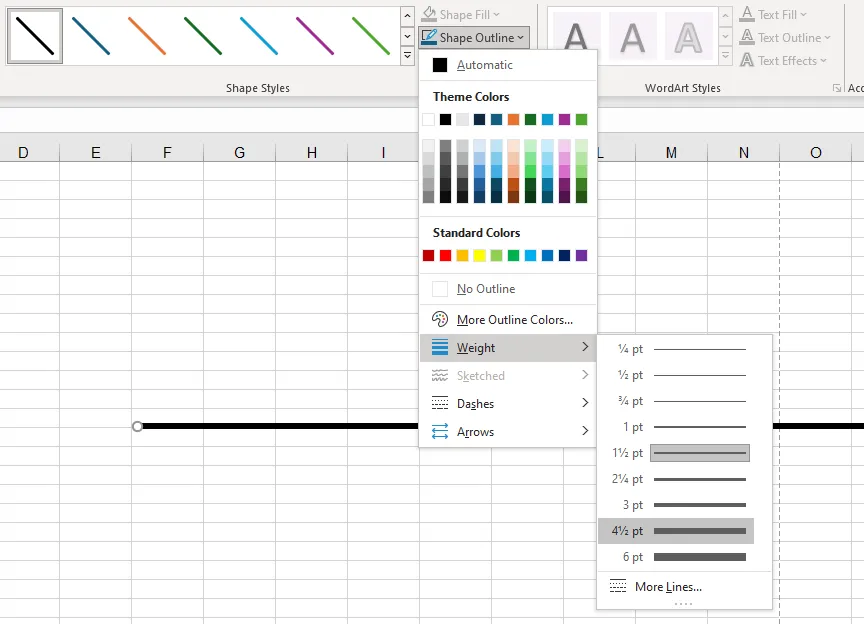

Change spine/branch colors via Shape Format—Shape Outline (e.g., dark blue for the spine, contrasting colors for main branches).

Adjust line thickness (2–3pt for the spine, 1–2pt for branches) to highlight hierarchy.

• Group for stability:

Hold Ctrl, select all shapes and text boxes, right-click, and choose Group.

This prevents accidental misalignment when moving the diagram.

Step 7: Save and Export

• Save as Excel file: Click File—Save As and choose .xlsx to preserve editability.
• Export as image: Right-click the grouped diagram, select Save as Picture, and choose PNG format with high resolution for use in reports or presentations.

Efficient AI Tool PicDoc: Simplify the Creation of Cause and Effect Diagrams

Skip the Excel hassle. PicDoc's AI instantly transforms your text descriptions into polished, professional cause and effect diagrams, accelerating your analysis. This eliminates frustration and manual effort, empowering teams to rapidly build complex fishbone diagrams. Visualize root causes instantly, foster clearer discussions, and identify critical issues faster.

While Excel works for basic cause and effect diagrams, it struggles with complex hierarchies (e.g., 5+ main branches with multiple sub-causes) and precise alignment, wasting time better spent on analysis. The AI tool PicDoc eliminates these hurdles by turning text descriptions into ready-to-use diagrams in seconds.

PicDoc Provides You with these Advantages

Excel's manual process requires hours of tweaking; PicDoc automates the hard work with:

• Text-driven generation: Describe your problem and causes in plain language (e.g., "Effect: Late project deadlines. Main causes: Team (understaffed, poor communication); Tools (outdated software); Process (unclear milestones)"), and PicDoc instantly structures a fishbone diagram.
• Intelligent layout: AI optimizes branch angles, spacing, and label placement to avoid clutter, even with 10+ sub-causes.
• Real-time editing: Modify labels, colors, or branch hierarchy with a click—no need to ungroup or re-align shapes.
• Multi-format export: Download as Excel, PNG, or PDF, seamlessly integrating into reports or presentations.

How to Use PicDoc for Cause and Effect Diagrams

• Visit PicDoc's official site: https://www.picdoc.ai

In the input box, describe your diagram:

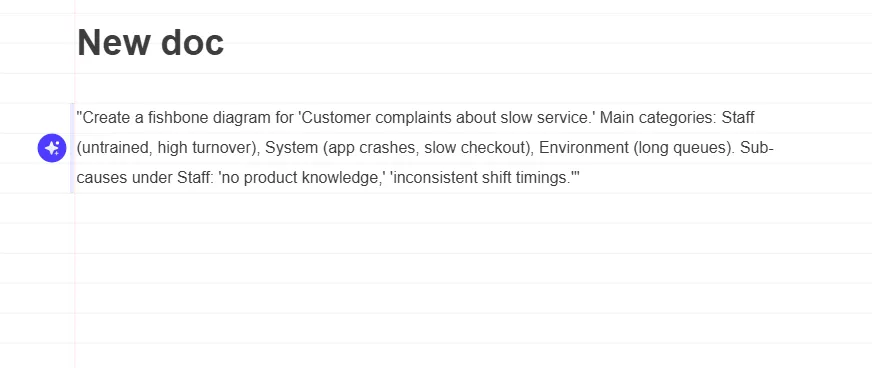

"Create a fishbone diagram for 'Customer complaints about slow service.' Main categories: Staff (untrained, high turnover), System (app crashes, slow checkout), Environment (long queues). Sub-causes under Staff: 'no product knowledge,' 'inconsistent shift timings.'"

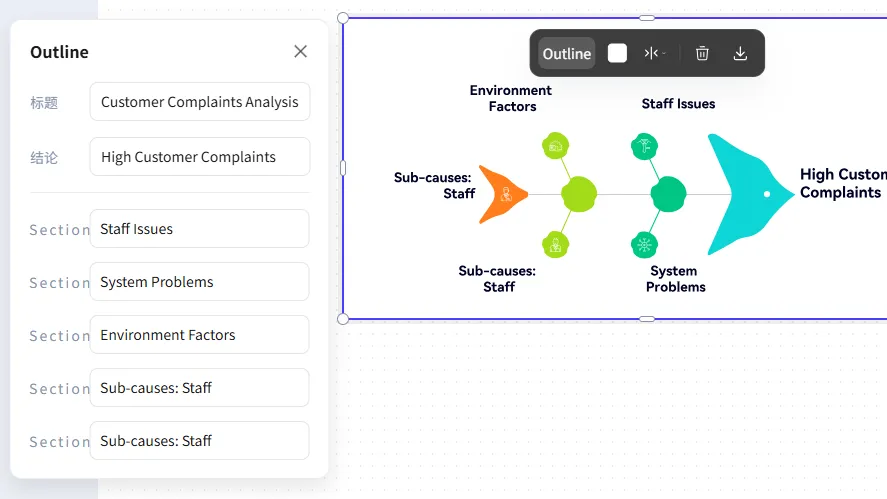

Select the text you want AI to generate, then click the blue button—PicDoc creates a structured diagram within seconds.

Edit as needed (e.g., adjust colors, add more sub-causes) and export in your preferred format. '

After completion, it can be exported as PNG, JPG, PPT, or PDF format, which is convenient for inserting into Word, reports, or presentations.

You can download the diagram you generate by PicDoc without any extra expense or subscription needed!

Conclusion

Creating a cause and effect diagram in Excel is feasible for simple scenarios, but it demands patience with shape alignment, formatting, and hierarchy management, especially for complex problems with multiple causes. While the step-by-step guide above helps navigate these challenges, the process remains time-consuming.

For teams prioritizing efficiency and clarity, PicDoc transforms cause and effect diagramming from a tedious task into a quick, intuitive process. By leveraging AI to automate layout and structure, PicDoc lets you focus on analyzing causes rather than formatting shapes.  PicDoc's intelligent suggestions enhance accuracy, enabling real-time collaboration to ultimately drive solutions and improve processes effectively.
